How to Calculate Weight of Mild steel | Hollow Round Pipe | I-Beam | Square Plate | Round plate

How to Calculate Weight of Mild steel | Hollow Round Pipe | I-Beam | Square Plate | Round plate



Density of Steel = 7850 kg/m3 (kilogram / cubic meter)

Density of Steel = 0.00785 kgs/mm



Mild Steel Weight Calculation

Weight Calculation of Hollow Round Pipe

How to Calculate Weight of Hollow Round Pipe?



How to Calculate Weight of Hollow Round Pipe






Solution:

Therefore, since 1" = 25.4mm - 1.5" = 25.4 x 1.5 = 38.1mm


D = 38.1mm

R = 19.05mm

L = 2 x π x r = 2 x π x 19.05 = 119.69mm

Thickness of pipe = 2mm

Section of Flat plate = 119.69mm x 2mm


Weight of Hollow round pipe in kgs/m = Area of bar / 127

= (119.69 x 2) / 127


Weight of Hollow round pipe in kgs/m = 1.884 kgs/ m



Length of Hollow round pipe = 20'

Therefore, 1’ = 0.3048m – 20 x 0.3048 = 6.096 m


Weight of Hollow round pipe = 6.096 x 1.884 =11.484 kgs



Weight of Steel bar in kgs/Ft = Area of bar / 416.56

= (119.69 x 2) / 416.56


Weight of Steel bar in kgs/Ft = 0.5746 kgs/ Ft


Length of Flat plate = 20'

Weight of Hollow round pipe = 0.5746 x 20' = 11.492 kgs



Weight Calculation of I-Beam

How to Calculate Weight of I-Beam?



How to Calculate Weight of I-Beam

Solution:

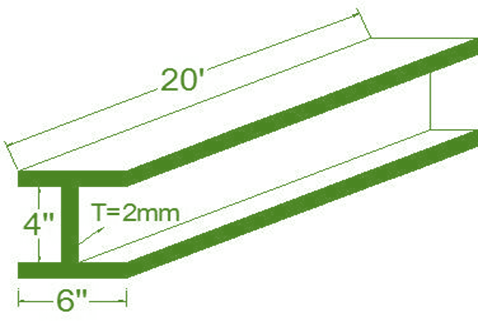

Therefore, since 1" = 25.4mm | 6" = 25.4 x 6 = 152.4 mm | 4” = 25.4 x 6 = 101.6mm



Dividing C/S Of I-Beam In Three Parts

Area-1 = 152.4mm x 2mm = 304.8mm2

Area-2 = 101.6mm x 2mm = 203.2mm2

Area-3 = 152.4mm x 2mm = 304.8mm2

Total Area = 812.8mm2



Weight Of I-Beam In Kgs/m = Area of bar / 127 = 812.8 / 127 = 6.4 Kgs/m

Length of I-beam = 20'


Therefore, 1’ = 0.3048m – 20 x 0.3048 = 6.096 m

Weight of I-beam = 6.4 x 6.096 = 39.014 kgs



Weight Of I-Beam In Kgs/feet = Area of bar / 416.56 = 812.8 / 416.56 = 1.951 Kgs/feet


For more

Weight of I-beam in kgs/feet = Area of bar x Density of steel

Area in mm2 = 812.8 x 0.00785

= 6.38kgs/m

= 6.38 / 3.28

= 1.945 kg/Ft



Weight of I-beam in kgs/feet = Area of bar x Density of steel

812.81mm2 to m2 = 812.81/10002 = 0.0008128m2


Area in m2 = 0.0008128 x 7850

= 6.38kgs/m

= 6.38 / 3.28

= 1.945 kg/Ft



Length of I-beam = 20'

Weight of I-beam = 1.951 x 20 = 39.02 kgs



Weight Calculation of Square Plate

How to Calculate Weight of Square Plate?

How to Calculate Weight of Square Plate

Weight of Square plate in kgs = Volume of plate x Density of steel

Therefore,

1" = 25.4mm = 1.01kgs

10" = 25.4 x 10 = 254mm

254mm = 0.254m



Dimension in metres = 0.254 x 0.254 x 0.002 x 7850 = 1.01kgs




Weight Calculation of Round plate

How to Calculate Weight of Round plate?

How to Calculate Weight of Round plate


Solution:

Weight of Round plate in kgs = Volume of plate x Density of steel

1" = 25.4mm

15" = 25.4 x 15 = 381mm

381mm = 0.381m


Dimension in metres = Area of Plate X Thickness of Plate X Density of Steel


= (Ï€/4) x d2 x thickness of plate x density of steel


= (Ï€/4) x 0.3812 x 0.002 x 7850 = 1.789kgs
